- Full-fledged desktop performance with the Intel® Celeron™ J1800 Processors dual Core
- Support DDR3L 1333MHz;
- 1*VGA+ 2*USB 2.0 +4*intel LAN+1*RJ45 COM(support console)+1*Power switch;
- 4*Intel 82583V 1000M LAN Gigavbit Ethernet controller
- 1*MSATA for date transfer,
- DC-IN 12V power supply and AC power adapter;
- Applied in Firewall, Network Server, Network Security, VPN Router etc.
- Support Linux, Pfsense, Sophos, Windows 10/8/7 etc os

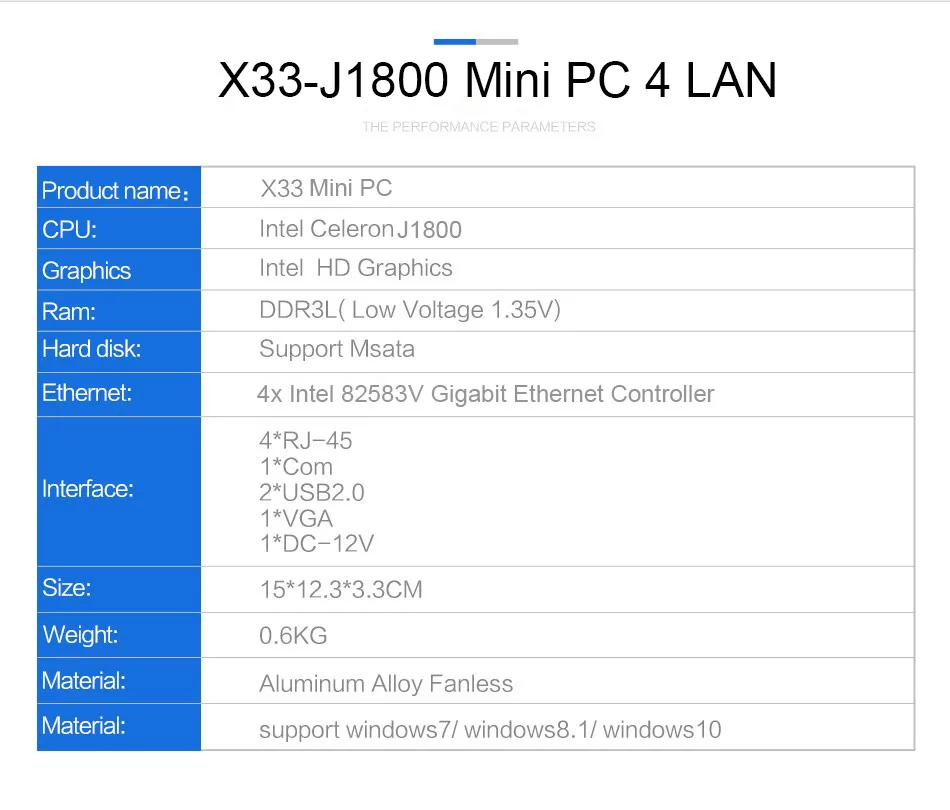

Specification
| Specification | |
| Onboard CPU | Intel Celeron J1800 Processor, 2M Cache, dual core 2.58 GHz |
| Celeron J1800 doesn’t support AES-NI | |
| Memory | Support DDR3L 1333/1600 MHz, 1.35V, Non-ECC |
| 1 x DDR3 DIMM Memory Slot. 8GB RAM MAX | |
| Hard Disk | Support SSD ( MSATA / SATA) |
| Doesn’t Support 2.5 inch SSD/HDD, no room | |
| Onboard LAN | 4 x Intel 82583V 10/100/1000 Mbps Gigabits Controller |
| Front-Panel Connectors | • 1 x DV 12V DC input |
| • 1 x VGA Ports | |
| Internal Connectors | • 1 x Minipcie port (for mSATA SSD) |
| • 1 x DDR3L SO-DIMM Memory Slot | |
| • 1 x SATA Port | |
| • 1 x SATA power connector | |
| • 1 x Automatically boot jumper | |
| Back-Panel Connectors | • 1 x Power on/off button |
| • 1 x HDD LED, Power LEDs | |
| • 2 x USB 2.0 Ports | |
| • 4 x Intel RJ-45 Ports | |
| Operating System | Support Windows, Linux, pfSense, etc |
| We re-install Windows OS, pfSense will charge extra $10 | |
| Colour | Black |
| Cooling System | Fanless cooling |
| Weight | 0.80KGS |
| Dimension | 133* 125* 40mm (W*D*H) |
| Power Consumption | TDP 10W |
About FAN
Fanless design, if you need fan on board, please leave us message, Thanks.
About RAM and SSD
Dimension: 133* 125* 40mm (W*D*H)
1.X29 2 LAN J1900, link: //globalsellingstore.com/store/product/XCY-Mini-PC-quad-core-J1900-8G-RAM-128G-SSD-HTPC-Fanless-Nuc-Intel-HD-Graphics/537726_32800720560.html?spm=2114.12010612.0.0.d4f1b22dQ3BYRg
2.X30G 2 LAN 2 COM, link: //globalsellingstore.com/store/product/Powerful-Mini-PC-Celeron-J1900-Quad-Core-2-0GHz-Windows-10-Minipc-Server-HDMI-VGA-Dual/537726_32831060845.html?spm=2114.12010612.0.0.d4f1b22dN6KLHs
